Capacities & Machinery — Built for Heavy, Precise, Complex Work
Over 7,000 m² of production area, a 5-axis CNC gantry with a 12,000 mm working length, and metrology tools accurate to 0.05 mm. Here is what we work with.
Facility Overview

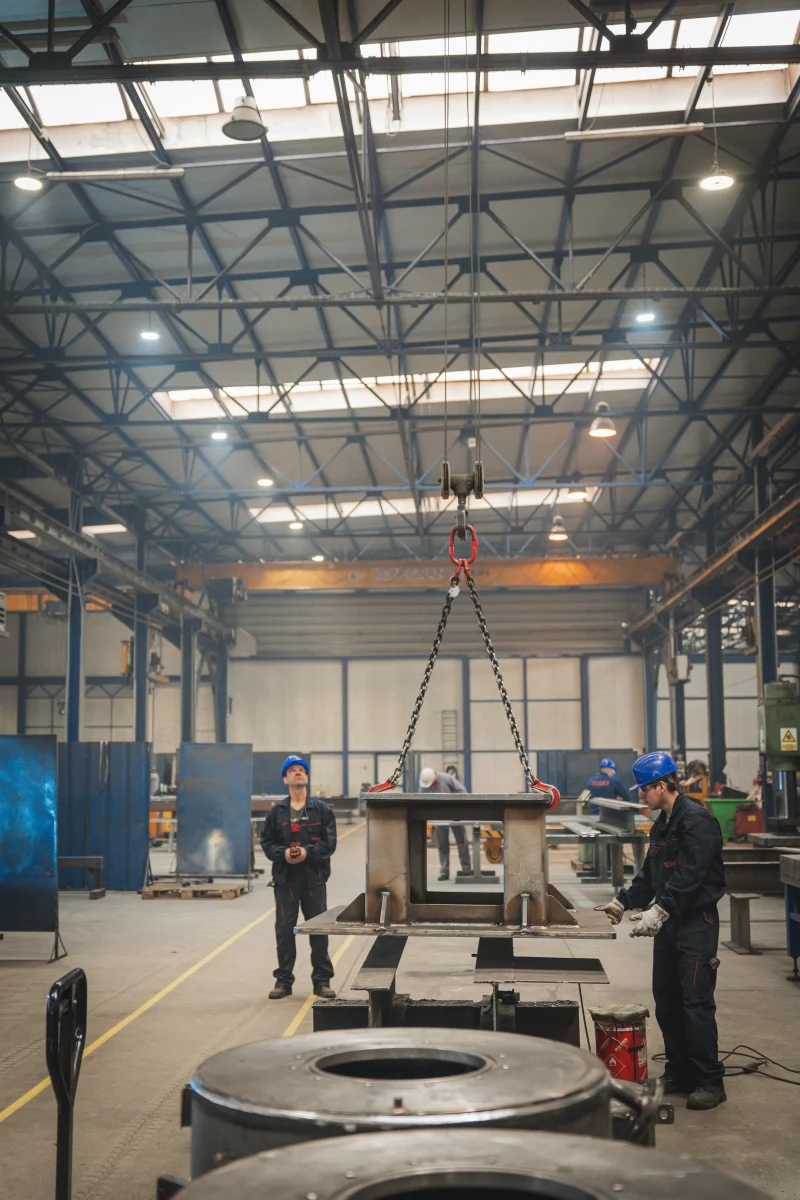

Our production facility covers over 7,000 m² across a 4-aisle hall equipped with 9 bridge cranes and a maximum lifting capacity of 35 tonnes. With a hook height of 5.8 m, the facility is built to handle components up to 12 metres in length and 25 tonnes in weight.

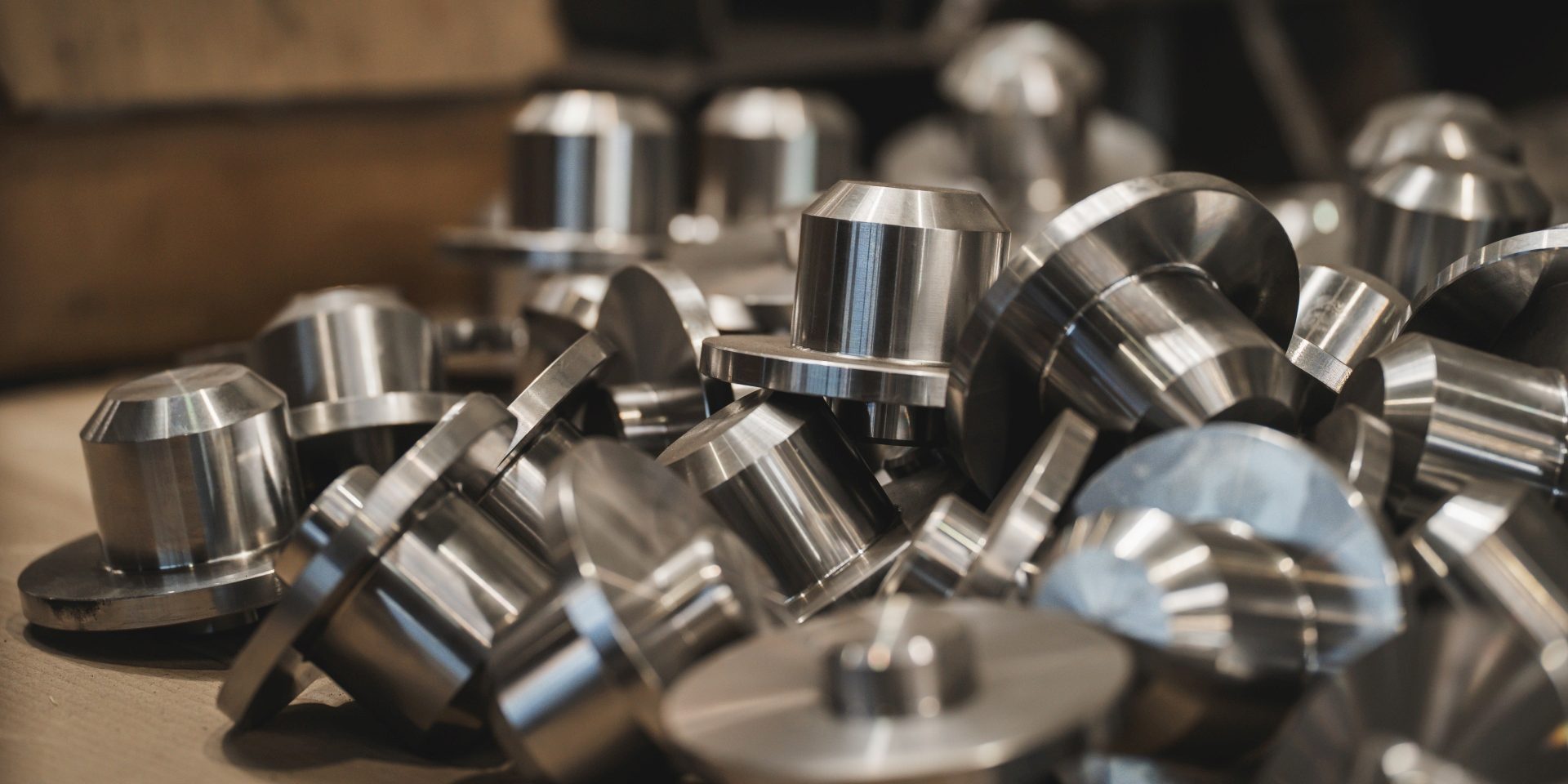

CNC Machining

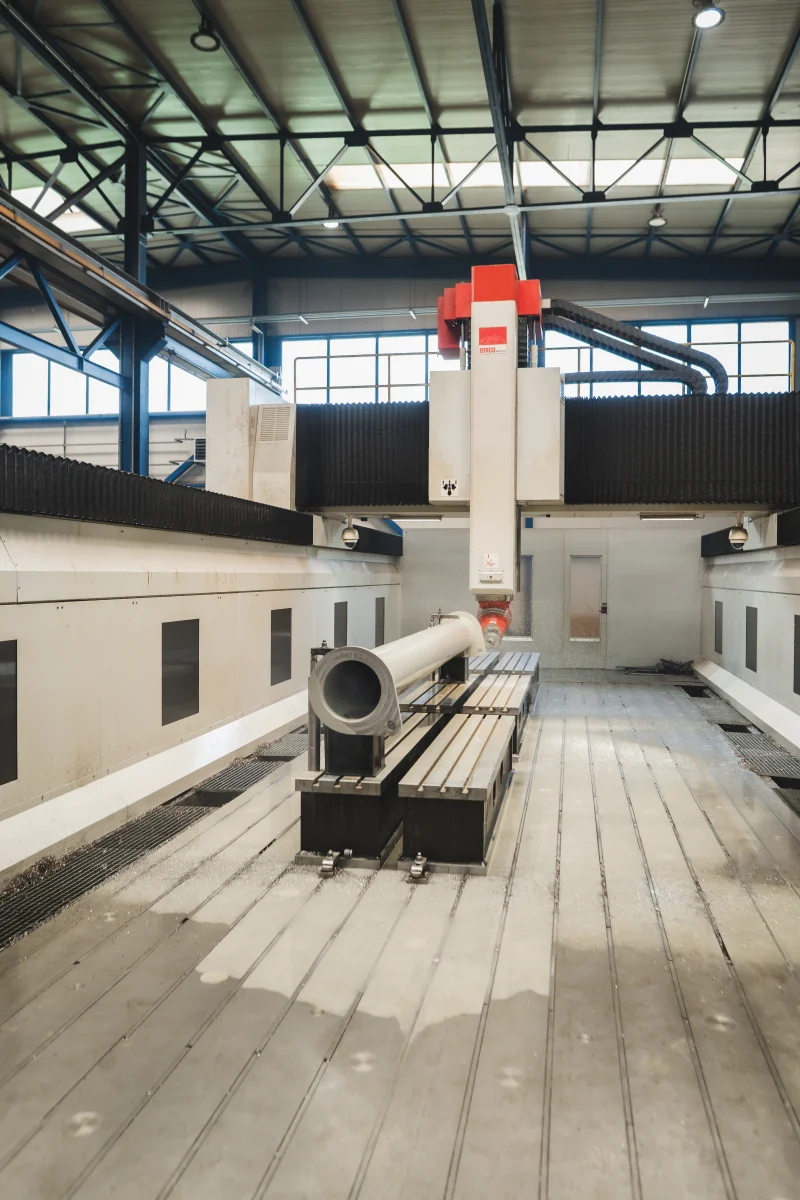

5-axis CNC Gantry Milling Machine Working envelope: 12,000 × 4,000 × 1,500 mm
3+2-axis CNC Horizontal Milling Machine Working envelope: 12,000 × 1,250 × 3,500 mm
CNC Vertical Milling Centres (3-axis and 5-axis) Working envelope: up to 3,000 × 1,000 × 1,500 mm
Turning Traditional lathes: Ø350 × 1,500 mm Face lathe: Ø1,500 × 200 mm
Additional operations: Drilling, boring, tapping, sawing, chamfering, grinding (surface finish correction)
Total machine park: 10+ CNC machining centres and conventional machines. 3-axis, 4-axis (rotary), and 5-axis configurations available.
Cutting, Forming & Processing

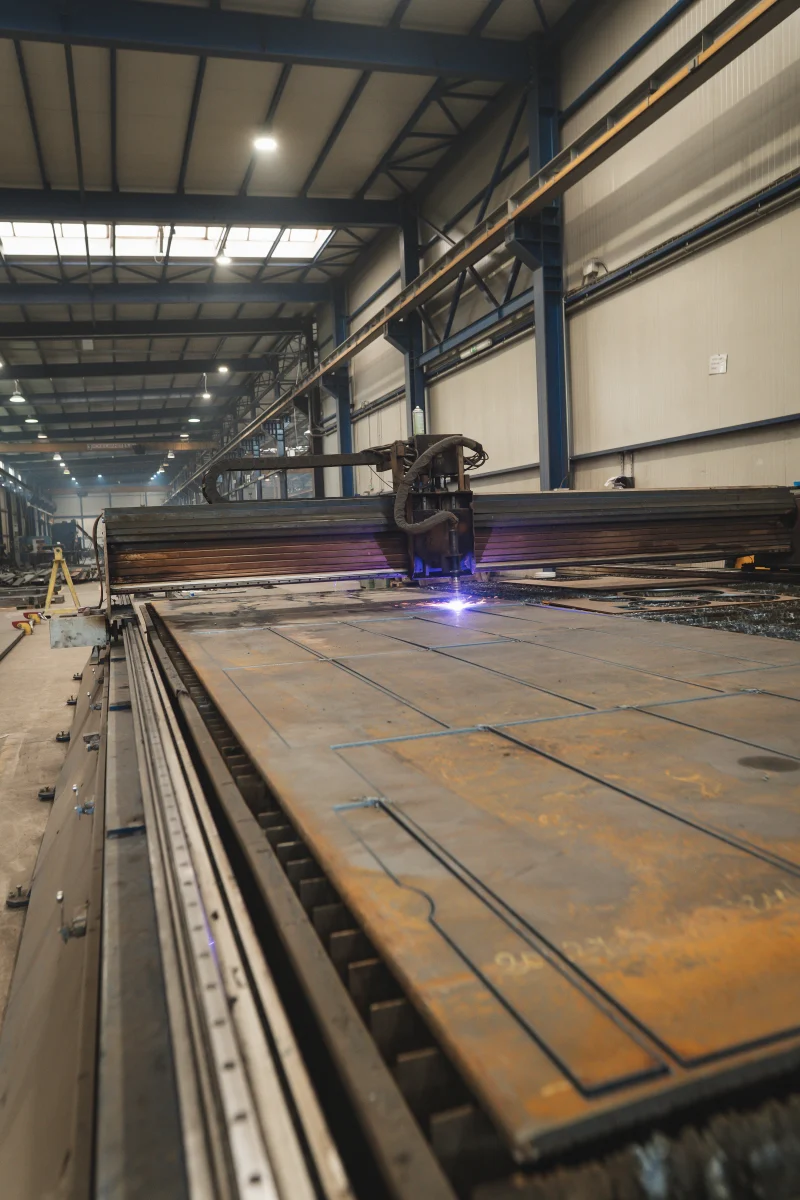

CNC Plasma Plate Cutting Machine Working area: 12,000 × 4,000 mm Maximum material thickness: 40 mm
CNC Oxy-Fuel Plate Cutting Machine Maximum material thickness: 120 mm
Bandsaw Capacity: up to Ø500 mm × 750 mm (at -60° to +60°)
Sheet Metal Shear Capacity: 3,000 × 6 mm
NC Press Brake Capacity: 400 tonnes Maximum bending length: 5,000 mm
Welding Processes & Personnel
Certified welding processes:
- Gas Metal Arc Welding — GMAW/MIG-MAG (process 135)
- Gas Tungsten Arc Welding — GTAW/TIG (process 141)
- Submerged Arc Welding — SAW
- Shielded Metal Arc Welding — SMAW/MMA (process 111)
Welding personnel:
- 1 International Welding Technologist (IWT)
- 10 TÜV Rheinland-certified welders
- 20+ qualified welding procedures (WPQRs)
- 2 International/European Welding Engineers (IWE/EWE)
- 2 International Welding Practitioners (IWP)
Precision Measurement
Leica Absolute Tracker AT403 Measurement volume: 0.8 m to 320 m diameter Achieves 0.05 mm positional accuracy over 10 metres on welded and machined structures
Hexagon Romer Portable Measuring Arm Working diameter: 2.5 m Integrated laser scanner and tactile probing
Non-destructive testing (NDT): Visual Examination and Liquid Penetrant Testing performed in-house. Ultrasonic (UT) and X-ray testing supported externally.

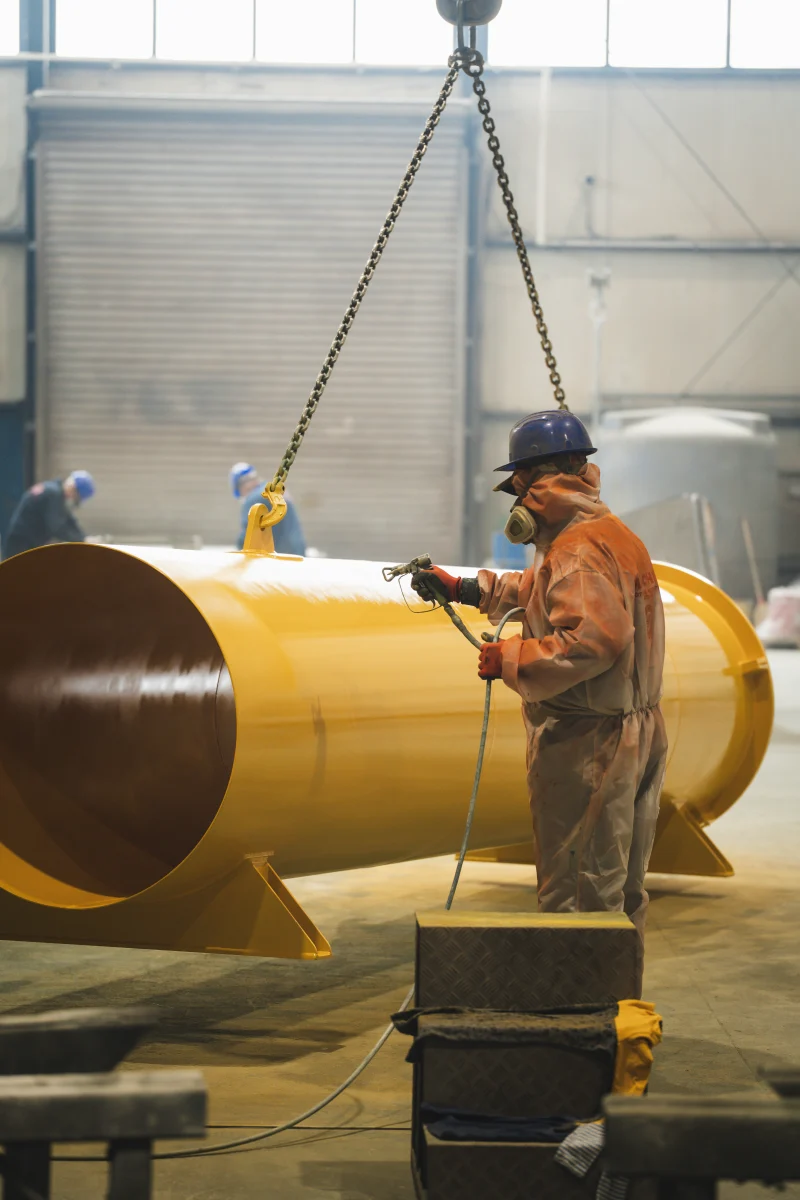

Shot Blasting & Painting
Shot Grit Blasting Cabin dimensions: 14 m length × 5.5 m width × 5 m height
Industrial Airless Spray Painting Enclosed, heated paint shop — 540 m², filtered exhaust system
Does Your Component Fit?
Send us your drawings or specifications. Our engineers will confirm feasibility and respond with a detailed technical quote.
